Thread Rolling Screws/ Thread Forming Screws

Click image to enlarge

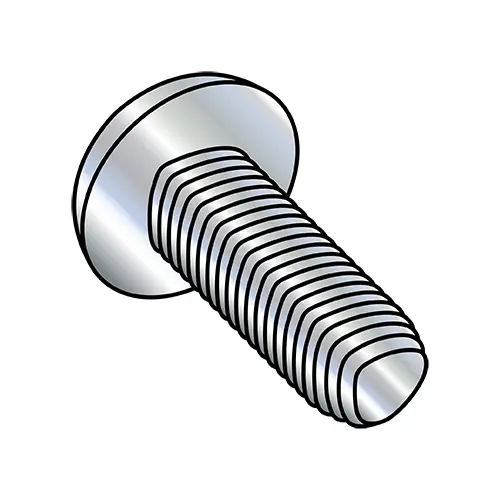

Thread Rolling Screws/ Thread Forming Screws

Thread rolling screws are designed for reliable and secure fastening into materials such as plastic. They have a  trilobular lobed cross-section, and form threads in pre-existing holes by pushing material outward during installation. When installed in sheet metal, thread rolling screws often require an extruded hole; the extrusion forms a lead-in and provides extra length for improved retention. Thread rolling screws are popular for applications where the loose chips formed by thread cutting processes must be avoided.

Read more about thread rolling screws below!




Value Fastener maintains a huge, in-stock inventory of steel thread forming screws and stainless steel thread forming screws. We carry a variety of brands and styles, including Plas-Fix® 45 and Plastite® and EJOT® PT® metric thread rolling screws, and Taptite® and Plastite® inch-size thread rolling screws.

EJOT® PT®-Alternative,  Metric Thread Rolling Screws

With a high thread profile and recessed thread root, the PT® screw provides increased thread engagement with minimal stress on the boss. It provides optimal performance in a wide range of thermoplastics.
Features
  • Narrow 30° thread profile
  • Optimum thread pitch
  • Round body
  • Recessed thread root
Benefits
  • Provides maximum resistance to back-out and pull-out
  • Minimizes boss failure

Plas-Fix®45 and Plastite®-Alternate,Metric Thread Rolling Screws and Plastite®-Alternative, Inch Sizes Thread Rolling Screws

The PLASTITE® 45 screw is designed to facilitate thread-forming in less-compressible plastics while providing high resistance to strip-out and pull-out.
It has smaller root and major diameters than a 48° PLASTITE®, so it can be used in smaller bosses.
Features
  • Tri-roundular configuration that allows displaced material to cold flow back into relief areas.
  • 45° profile allows thread to penetrate deeply into plastic material
  • Single lead design and narrow helix angle lowers drive torque and failure torque in stiffer plastics
Benefits
  • Reduces possibility of boss failure
  • Increases product reliability
  • Eliminates need for inserts and lock washers
  • Minimizes radial stress
  • Allows design of thinner bosses
  • Generates strong mating threads
  • Resists vibration loosening
  • Reduces probability of strip-out and pull-out
  • Achieves wide differentials between drive and fail torque
  • Creates less stress on the boss

Taptite®-Alternative, Inch Sizes Thread Rolling Screws

TAPTITE 2000® fasteners are high performance thread rolling screws specially designed to lower your in-place fastening costs.
TAPTITE 2000® screws form internal threads into plain holes in ductile materials upon initial installation, which:
  • Eliminates the need to pre-tap the nut member
  • Reduces problems associated with assembling screws and bolts into pre-tapped holes, such as cross-threading
Features
  • Trilobular™ configuration
  • Radius Profile Thread™
  • Roll forms own work-hardened mating threads
  • Available with TORX Plus® Drive System
Benefits
  • Reduces friction
  • Increases prevailing torque
  • Resists loosening caused by vibration
  • Lower end load requirements
  • Lowers thread forming torque without sacrificing performance
  • Higher, more uniform drive-to-fail ratio
  • Increased drive-to-strip ratio
  • Resist internal thread stripping
  • Excellent axial alignment
  • Results in higher strength internal threads due to the cold flow/work hardening that occurs during the forming of the nut thread
  • Formed thread can accept metric fastener
Design Guidelines
  • Drive Systems: All styles available; TORX Plus® Drive System recommended
  • Point Style: Standard TAPTITE® point; also available in SP™ (short point) and CA point
  • Materials: Low carbon steel, medium carbon steel, alloy steel, stainless steel
  • Finishes: Will accept all typical finishes

Follow the links above to find the thread rolling screws you’re looking for, or use the filters at left to narrow your search by size, length, material, or other factors. We have the right thread forming screws for any application.

See individual product listings for additional information and specifications.

Contact Us for Thread Rolling Screws & More

With one of the largest inventories you’ll find anywhere and great low prices, Value Fastener is your #1 source for thread forming screws. Order today, request a quote, or contact us for the thread rolling screws you need.
